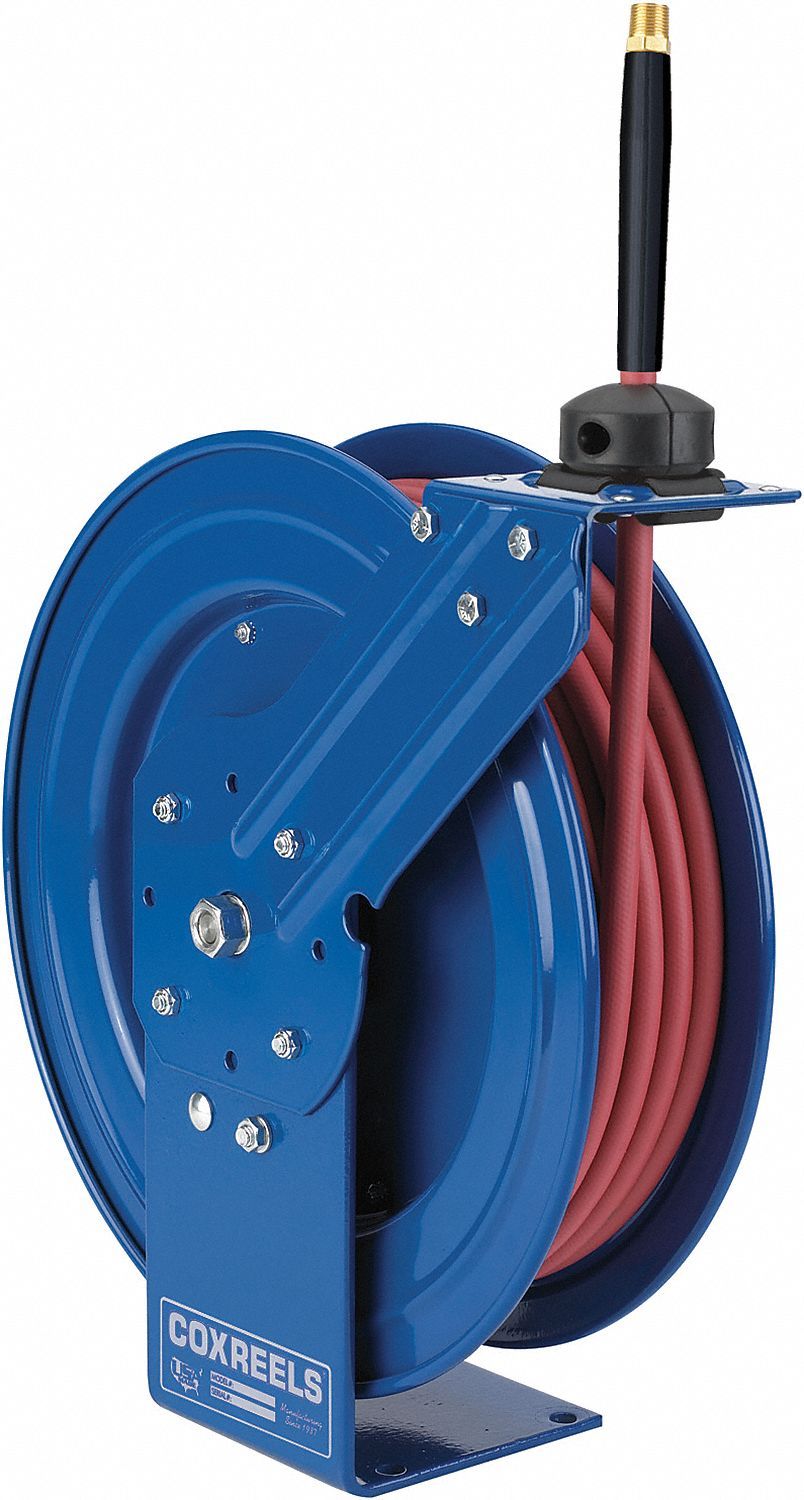

Spring Return Hose Reel 25 ft 3/8" ID, 300 psi

In Packaging?: Yes
Damaged?: Unknown
Brand: COXREELS
Model: P-LP-325-RH-BXB
Standard air or water spring-return hose reels are single-pedestal, low-pressure (up to 500 psi) hose reels that include standard low-pressure hose for air or water service only. These reels mount to the floor, wall, or ceiling, and include an adjustable guide arm. Standard air/water hose reels are used with air or water hoses for pneumatic tools, in service centers, and at construction sites. Brand: COXREELS Hose Reel Primary Application: Air; Water Maximum Operating Pressure: 300 psi Hose Capacity: 25 ft (3/8 in I.D.) Drive Type: Spring Return Enclosed: No Includes Hose: Yes Hose Inside Dia.: 3/8 in Hose Length: 25 ft Reel Material: Steel Speed Limited Retraction: No Overall Height: 14-1/2 in Overall Length: 13-3/4 in Overall Width: 6-1/4 in Corrosion-Resistant: Yes For Dual Hose: No Hose Color: Red Hose Cover Material: EPDM Hose Fitting A Gender: Male Hose Fitting A Material: Brass Hose Fitting A Size: 3/8 in Hose Fitting A Type: NPT Hose Fitting B Gender: Male Hose Fitting B Material: Brass Hose Fitting B Size: 3/8 in Hose Fitting B Type: NPT Hose Outside Dia.: 5/8 in Hose Reel Type: Wall Mount Hose Reel Hose Tube Material: EPDM Base Motion Type: Stationary Pedestal Type: Single Pedestal Number of Guide Arms: Single Arm Number of Mount Holes: 4 Reel Color: Blue Twin Hose Compatible: No Swivel Material: Brass Swivel Inlet Type: NPT Swivel Outlet Gender: Male Swivel Outlet Size: 3/8 in Swivel Outlet Thread Size: 3/8 in - 18 Swivel Outlet Type: NPT Swivel Inlet Gender: Female Swivel Inlet Size: 3/8 in Swivel Inlet Thread Size: 3/8 in - 18 Reel Width: 6-1/2 in Reel Finish: Powder Coated Weight: 28.56 lb Latch Type: Locking Bearing Construction: Permanently Lubricated Maximum Operating Temperature: 150 F Fasteners Included: No Features: 1" Solid Steel Axle; External Fluid Path; Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability; Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish; Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length; Non Corrosive Stainless Steel Pawl Spring; Pawl & Zinc Plated Ratchet; Rolled Edges and Ribbed Discs Provide Strength and Safety; Solid One Piece Spiral Hose Guard: No Includes Hose Stop: Yes Includes Leader Hose: No Minimum Operating Temperature: -40 F Mount Base Height: 6 in Mount Base Width: 5 in Mounting Hole Center to Center Width: 3 in Mounting Hole Center to Center Height: 5 in Mount Hole Diameter: 1/2 in Reel Diameter: 13-1/2 in Fitting Type: NPT x NPT Includes: Hose; Hose Guard; Hose Stop Standards: CE Fitting Size: 3/8 in x 3/8 in Hose End Configuration: 3/8 in MNPT Overall Dimensions: 13-3/4 in L x 6-1/4 in W x 14-1/2 in H Fitting Gender: Male x Male Mounting Location: Ceiling; Floor; Truck; Wall Display Qty: 1 Display Sell UOM: EA.
