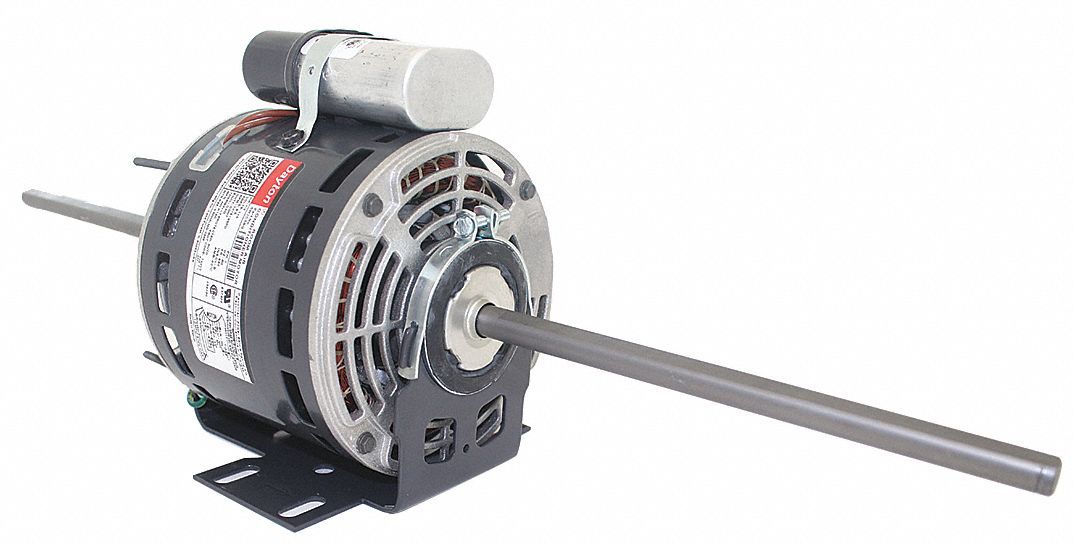

DAYTON A/C Motor: 4-Speed, 1/8 HP, 277V 1,075 RPM

In Packaging?: Yes
Damaged?: Unknown
Brand: DAYTON
Model: 5WJC2
Permanent split capacitor (PSC) air conditioner AC motors provide powerful, smooth, and softer startups for use with fans and blowers that must gradually come up to speed after start up. They have a capacitor that decreases the amount of power consumed for a given load. Brand: DAYTON Motor Application: HVAC/R Motor Sub Application: Room Air Conditioner Phase: Single Motor Design: Permanent Split Capacitor HP: 1/8 Nameplate RPM: 1,075 No. of Speeds: 4 Voltage: 277V AC Full Load Amps: 0.72 Frame: 42Y Motor Thermal Protection: Auto Hz: 60 Hz Motor Service Factor: 1 Ins. Class: B Motor Shaft Rotation: CW/CCW Max. Ambient Temp.: 60 C Duty Cycle: Continuous Lead Length: 59 in Motor Enclosure Design: Open Air-Over Motor Mounting Type: Cradle Base Shaft Dia.: 1/2 in Shaft Length: 8-1/2 in Motor Bearings: Sleeve Motor Shaft Design: Flat Length Less Shaft: 5-1/8 in Body Dia.: 5 in Mounting Stud Pattern: 3-3/16 in x 3-3/16 in Bolt Circle Dia.: 4-11/16 in Stud Size: #8-32 UNC Ring to Ring Center: 4-11/16 in Resilient Ring Dia.: 2-1/2 in Standards: CSA Certified (244617); UL Recognized (E37403) Capacitor Required: Included Includes: 5 MFD 370V AC Capacitor RPM Range: 1,001-1,100 Voltage Compatibility: 208-230/277V AC; 230/277V AC; 265V AC; 277/230V AC; 277V AC.
