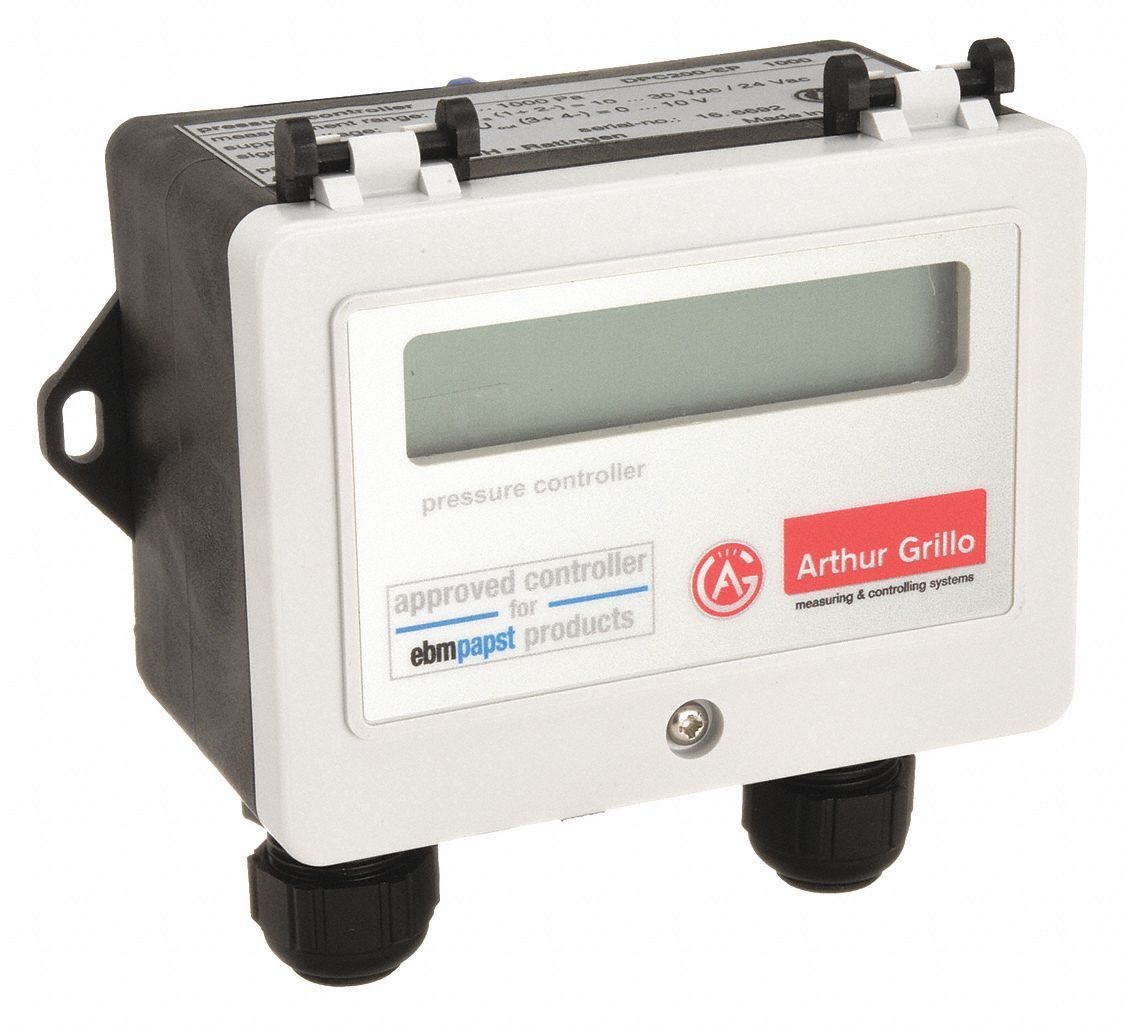

EBM Digital Differential Pressure Gauge 0 4000 Pa

In Packaging?: Yes
Damaged?: Unknown
Brand: EBM
Model: 700-00-1065
These pressure transduces have an LCD digital display that shows readings of differential pressure or static flow in a system. They also have an alarm output and an analog output switch for systems with dry air or inert gases. Brand: EBM Compatible Process Media: Air Series: 700-00 Process Connection Location: Bottom Accuracy: 1.00% Maximum Working Static Pressure: 0 to 4000 Pa Primary Display Range: 0 to 4000 Pa Display Units: cfm; in wg; m3/hr; Pa Current Output: 0 to 10V DC Hazardous Location Rating: Not Rated IP/NEMA Rating: IP54 Case Material: Polyamide Application: Filtration Case Height: 2.76 in Case Width: 3.74 in Mounting Orientation: Upright Only Mounting Type: Wall-Mount Process Connection Size: 5 mm Process Connection Type: Smooth Barb Adjustable Set Points: Yes Ambient Operating Temperature Range: -10 to 50 C; 14 to 122 F Auto-Shutoff: No Backlit Screen: No Blowout Safety Back: No Case Color: White Case Depth: 2.16 in Case Shape: Rectangle Display Range: 0 to 16 in wg; 0 to 4000 Pa Display Resolution: 0.01 in wg Display Screen Type: LCD For Tubing Size: 5 to 6 mm Housing Material: Plastic Includes Batteries: No Includes Calibration Certificate: No Includes Mounting Hardware: No Low Battery Indicator: No Non-Sparking: No Number of Digits: 16 Number of Display Lines: 2 Number of Set Points: 2 Number of Switches: 3 Panel-Mountable: No Peak Hold: No Sensor Material: Silicone Sensor Type: Diaphragm Set Point Selection: Dry Contact Standards: EN 50081-2; EN 50082-2; RoHS Directive 2011/65/EU Compliant Switch Indicator: None Temperature Drift: 0.11%; 0.17%; 10 F (Span); 10 F (Zero) Zero Error: 0.75% Process Connection: 5 mm Smooth Barb Case Size: 3.74 in x 2.76 in Mounting: Wall-Mount Upright Only.
